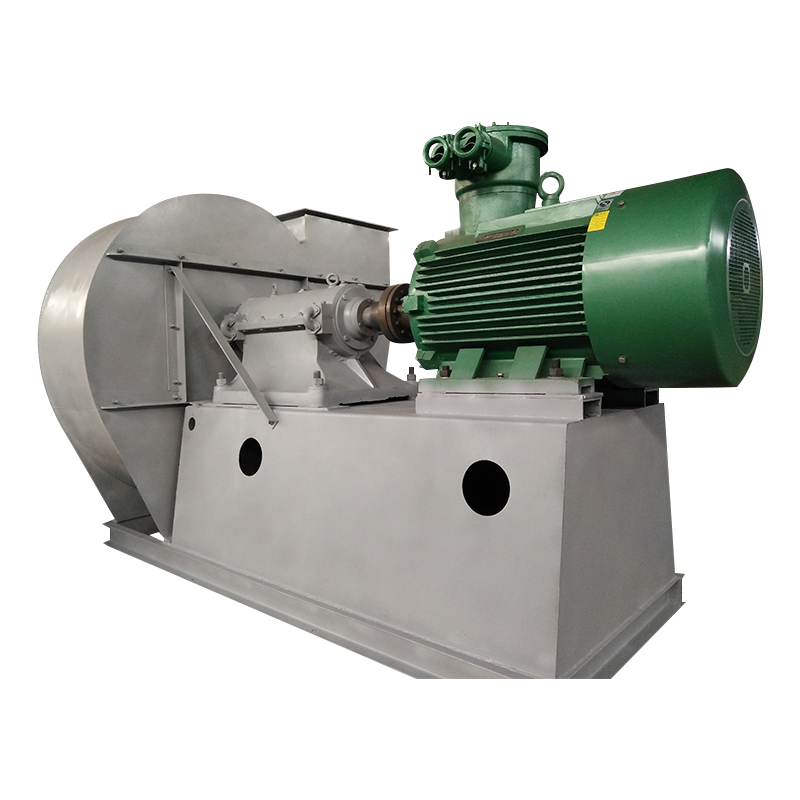

The Industrial Titanium Centrifugal Fan is made of titanium plate welded by argon arc welding, which plays a role in resisting strong acid and alkali. It is widely used in chemical factories, pharmaceutical factories and other places. The anti-corrosion effect is many times better than 316L/2205 stainless steel, and the melting point of titanium is as high as 1678 degrees. Good plasticity.

Industrial Titanium Centrifugal Fans, acid resistance is better than stainless steel glass fiber reinforced plastic, performance characteristics, acid, alkali and salt resistance, antistatic professional oil resistance, strong oxidation chemical corrosion resistance, use range -50 degrees to 580 degrees. Excellent performance, stable structure, excellent performance, long service life, economical and practical, it is an excellent product in domestic anti-corrosion fans. It is suitable for non-ferrous metal smelting, rare and precious metal smelting, and chlor-alkali chemical industry, titanium dioxide, ferric 3, ferric 3 bromide, bleaching powder, magnesium chloride, sulfate fertilizer, paper industry and other dust collection and exhaust air supply process. Titanium fan is a newly developed product of our company. The fan has the characteristics of compact structure, small size, light weight, simple structure, convenient use, low noise, flat performance curve, high efficiency and wide, and safe operation under a variety of corrosive gas conditions. It is well received by users.

Titanium fans are especially suitable for high-pressure forced ventilation and corrosive gas environments in chemical, chemical fertilizer, metallurgy, pesticide, medicine, dye and other industries, especially for fluorine exhaust fans in phosphate fertilizer industry, exhaust fans in ammonium phosphate industry, and titanium dioxide industry Exhaust exhaust fan. The temperature of the conveying medium is generally not more than 580 ℃, and the dust and hard fine particles contained in the medium are not more than 150mm/m3. The fan is 1 high-tech product with large investment 1 high cost performance and long service life.

Product parameters

1. This fan is a single suction air intake with NO.4-16 numbers. Can be made into a, c, d.

2. Each machine number of this fan can be made into two types: reverse rotation or reverse rotation (facing from one end of the motor);

3. The outlet position of the fan is expressed by the outlet angle of the casing: it can be made into six angles of 0, 45, 90, 135, 180 and 225;

4. The transmission mode of the fan is D-type. Due to the diversification of models, rotation directions and exit angles, it can adapt to the requirements of fan due to changes in working conditions such as installation site and piping direction.

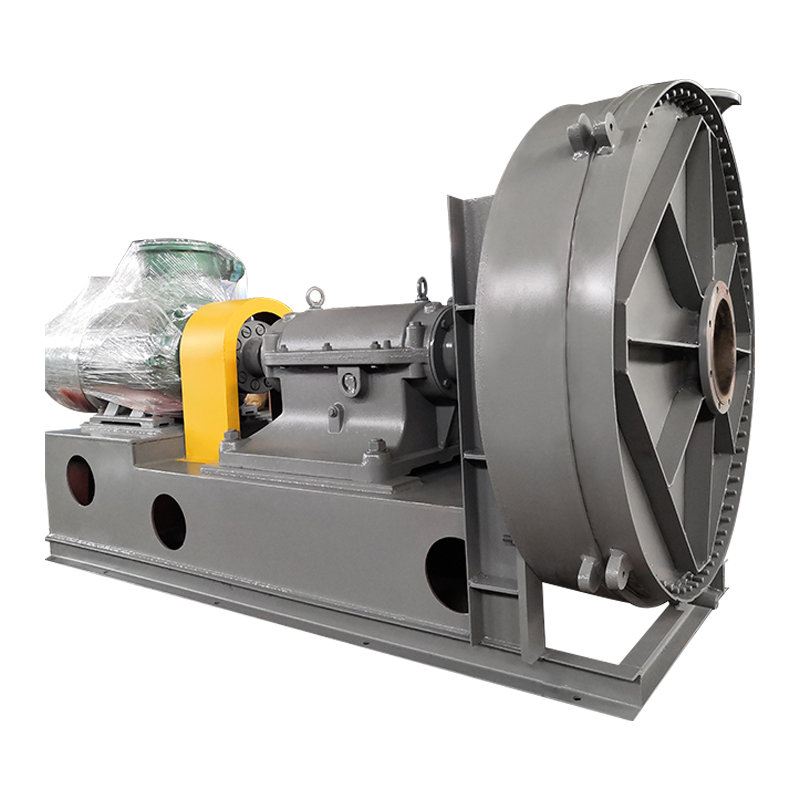

The Industrial Titanium Centrifugal Fan is mainly composed of impeller, casing, front cover, rear cover, air duct and transportation group.

1. Impeller: All of them belong to forward curved blade type, which is balanced by static and dynamic, so the operation is stable and reliable.

2. Shell: The pot-shaped shell is welded with titanium steel plate, and the overall surface is treated.

3. Air inlet: make a convergent streamlined type and fix it on the front cover plate group with bolts.

4. Transmission group: It is composed of main shaft, coupling, bearing box, etc. The main shaft is made of high-quality carbon steel, and the bearing box and coupling are all high-quality cast iron. When ordering, indicate the type, rotation speed, flow rate, full pressure, air outlet angle, rotation direction and motor model and specification of the required fan.
